IKORE
11275979
State of the art lifting technology

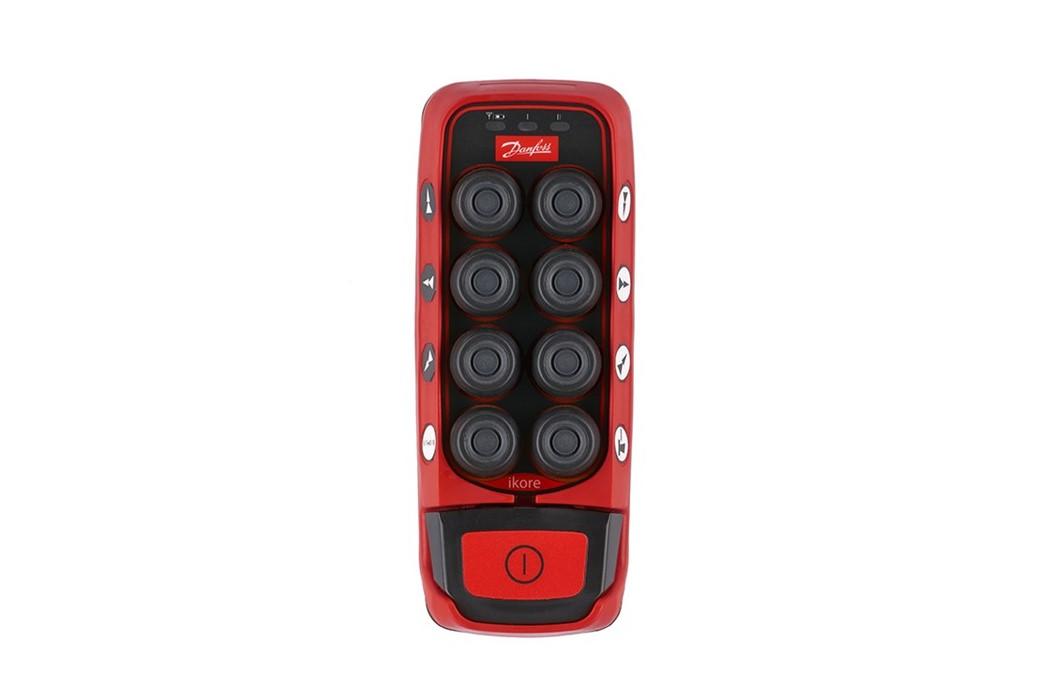

Ikore represents the new generation of handheld units and is ready to operate in the 2.4 GHz universal band.
With the user perspective in mind, Ikore has been designed with a small size and weight without sacrificing the robustness. The improved ergonomics prevents the user from suffering postural fatigue. This handheld transmitter is our newest solution for standard overhead crane applications.
Specifications
| Transmitter | Ikore |
| Stop function | Cat. 3 - PLe. EN12849-1 and SIL 3 IEC 61508 / IEC 62061 |
| Ingress protection | IP65/NEMA4 |
| Anti condensation system | N/A |
| Frequency band | 2.4 GHz |
| Main mechanisms (max. #) | Push button (7) |
| Removable EEPROM | External |
| Battery model | 4 AAA (Ikore) / BT11K (IkoreB) |
| Battery life | >80 hours (100% duty cycle) |
| Operating temperature range | -20C +70C (-4F +158F) |
| Weight (with battery) | 315 grams |
| Harness | Hand strap/shoulder strap |
| Display | N/A |
| Cable connection | N/A |
| Range limiter | N/A |
| Associated receivers | R11 |
This system is provided with a spare transmitter and protective cover for one transmitter
Click here for IKORE datasheet
