TM71 and 72
 TM71 DLA |  TM72 DLA |

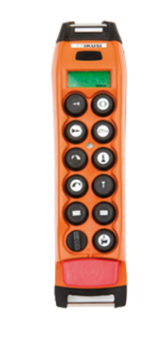

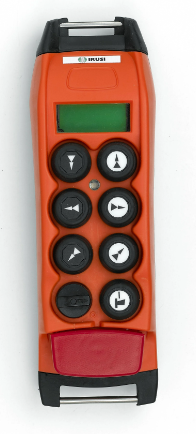

TM70 handheld transmitters
The TM70 handheld transmitters are robust and reliable, designed to be used in industrial applications.
These have been successful products for many years and we will keep supplying them as the new handhelds are being introduced to the market.
Specification
| Transmitter | T70 1 |
| Stop function | Cat. 3 – PLd |
| Ingress protection | IP65/NEMA4 |
| Anti condensation system | N/A |
| Frequency band | Multiband (400 – 930 MHz) |
| Main mechanisms (max. #) | Push button (6) |
| Auxiliary mechanisms | Toggle and rotary switches |
| Removable EEPROM | External |
| Battery model | BT06K |
| Battery life | 10 hours |
| Operating temperature range | -20C +70C (-4F +158F) |
| Weight (with battery) | 460 grams |
| Harness | Hand strap / shoulder strap |
| Display | 2 x 12 Char LCD |
| Cable connection | N/A |
| Range limiter | Available |
| Associated receivers | R06/R13/R70/MPCAN/MP08 |
Click here for datasheet
