ikontrol 3
When service meets design

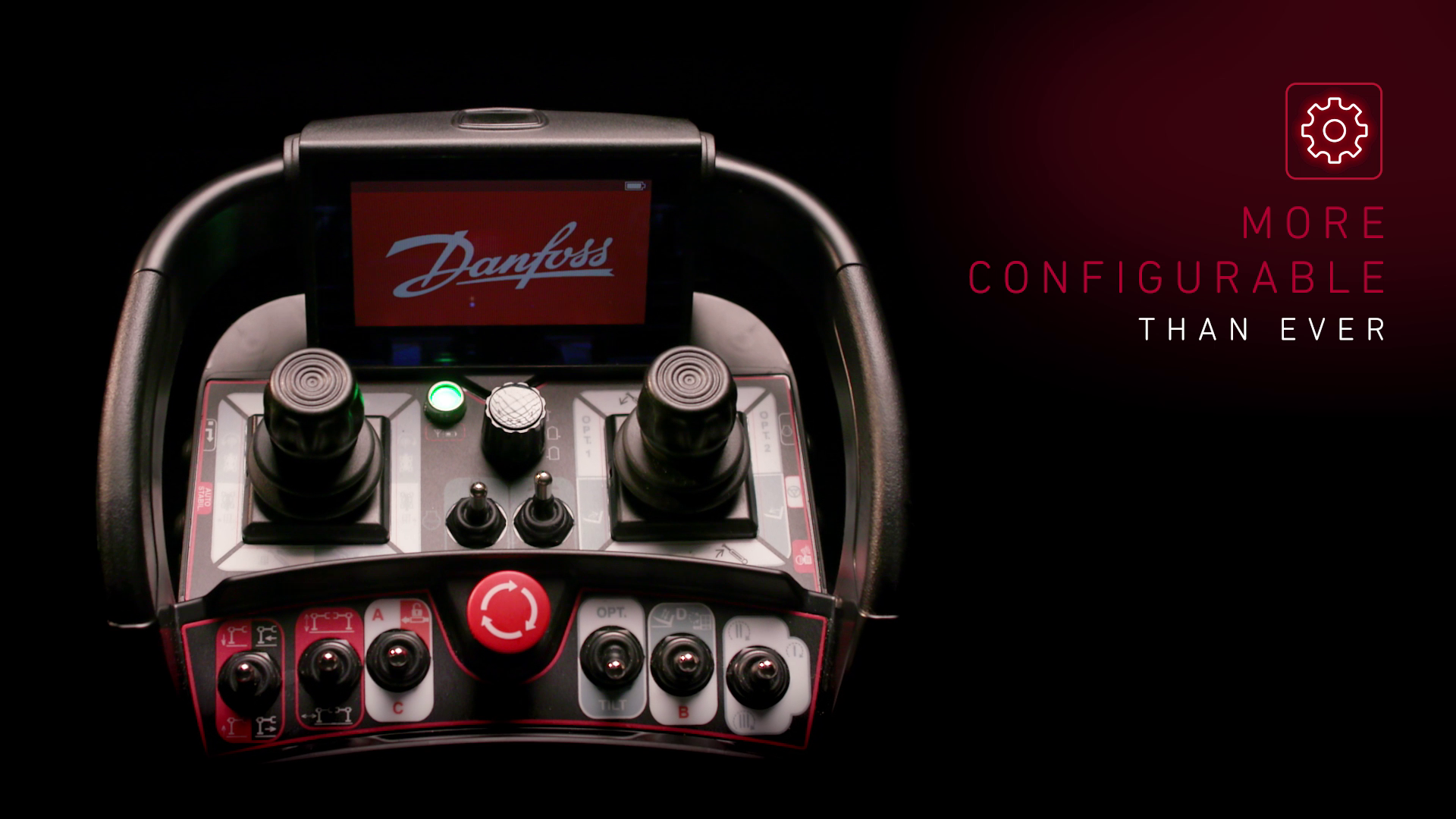

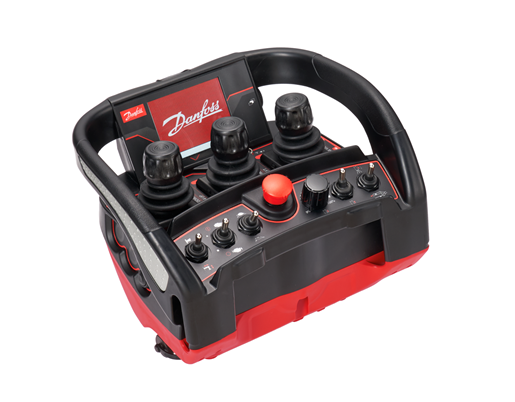

The most versatile of the Ikontrol range for both industrial and mobile applications, allowing a choice of 2 or 3 joysticks or upto 6 paddles as well as a variety of toggle and pushbuttons.
Specifications
| Transmitter | IK3 | |
| Stop function | Cat. 3 – PLd | |
| Ingress protection | IP65/NEMA4 | |
| Anti condensation system | Goretex film | |
| Frequency band | Multiband (400 – 930 MHz) | |
| Main mechanisms (max. #) | Joysticks (3) / Paddles (6) | |
| Auxiliary mechanisms | Push button, toggle and rotary switches | |
| Removable EEPROM | External | |
| Battery model | BT27IK | |
| Battery life | 14 to 20h (use at 50%) | |
| Operating temperature range | -20C +70C (-4F +158F) | |
| Weight (with battery) grams | 1780 g | |
| Harness | Belt / shoulder strap | |
| Display | 3.5” Colour TFT | |
| Cable connection | Yes (M12 connector) | |
| Range limiter | Yes | |
| Associated receivers | R13/R70/R70 PLUS/MPCAN/MP20 |
Click here for IK3 datasheet
